Most pack integration problems begin at the interfaces.
A battery may meet the required voltage and capacity, yet still create rework if the available space, mounting points, connector, cable routing or service access are defined too late.
Before the pack layout is fixed, align the mechanical and electrical boundaries:

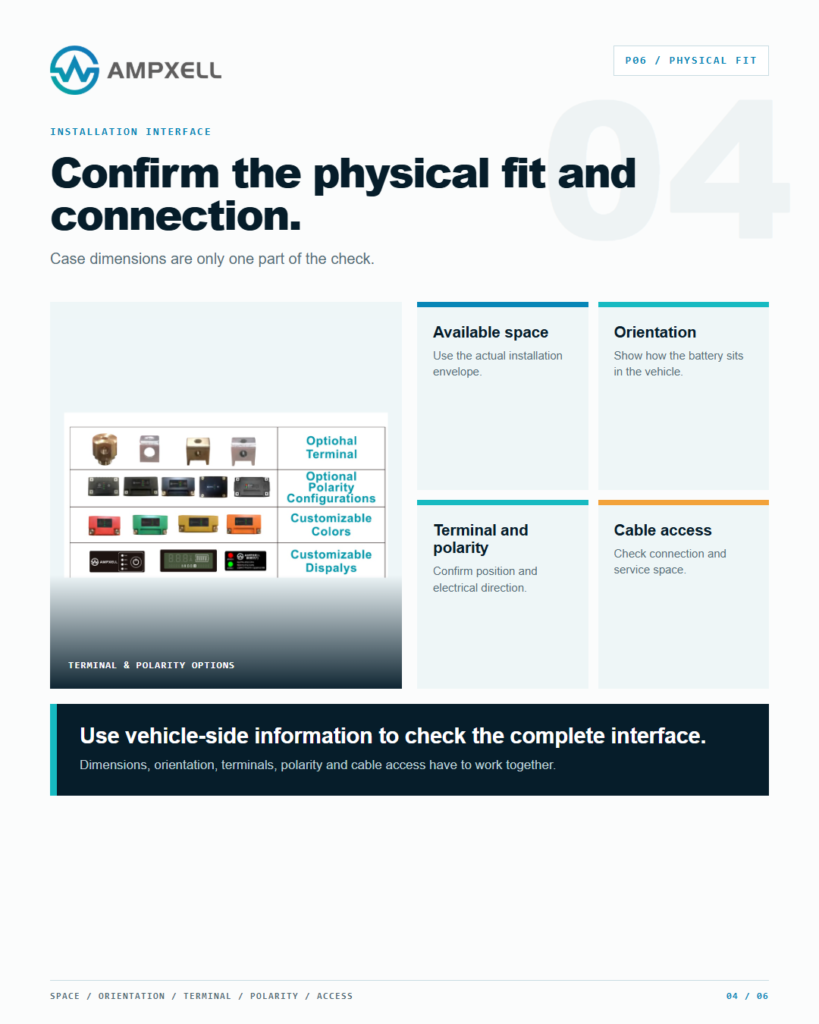

– available envelope, orientation and clearance
– mounting method and access for installation or replacement

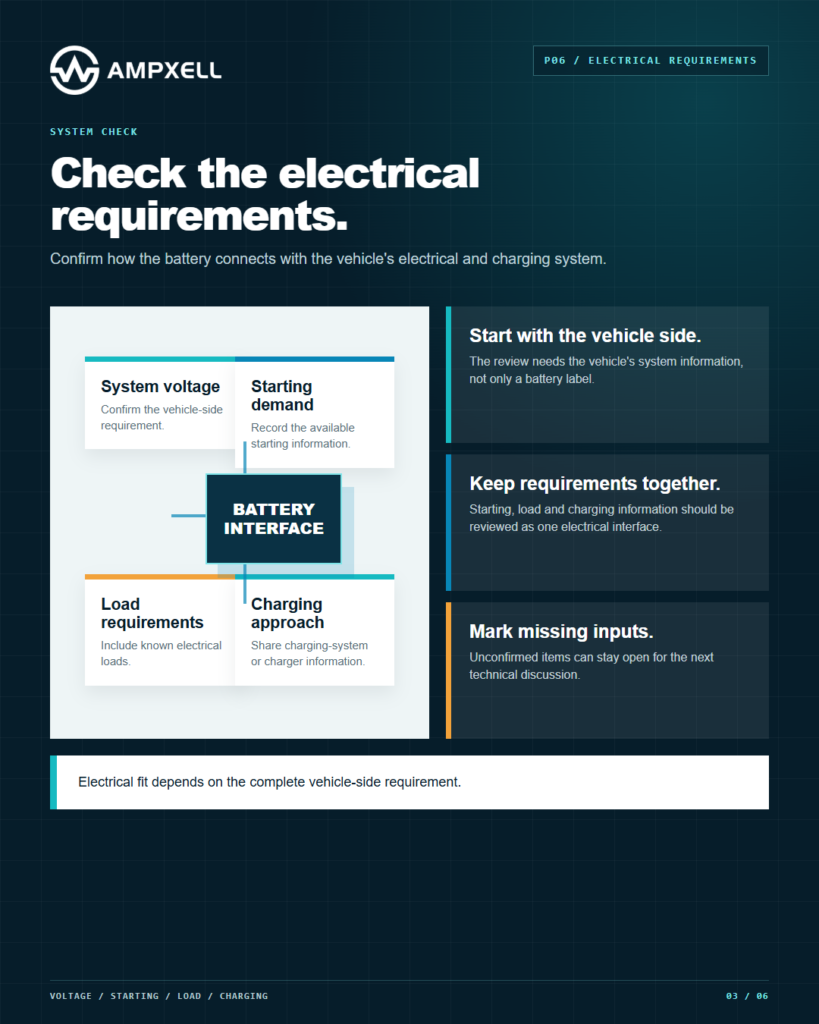

– system voltage and load profile
– connector type, polarity, pinout and cable routing
– required communication or protection signals
– operating conditions and maintenance approach
These details affect whether the pack can be installed, connected and serviced in the equipment. They also help determine which requirements can start from an existing configuration and which need engineering review.

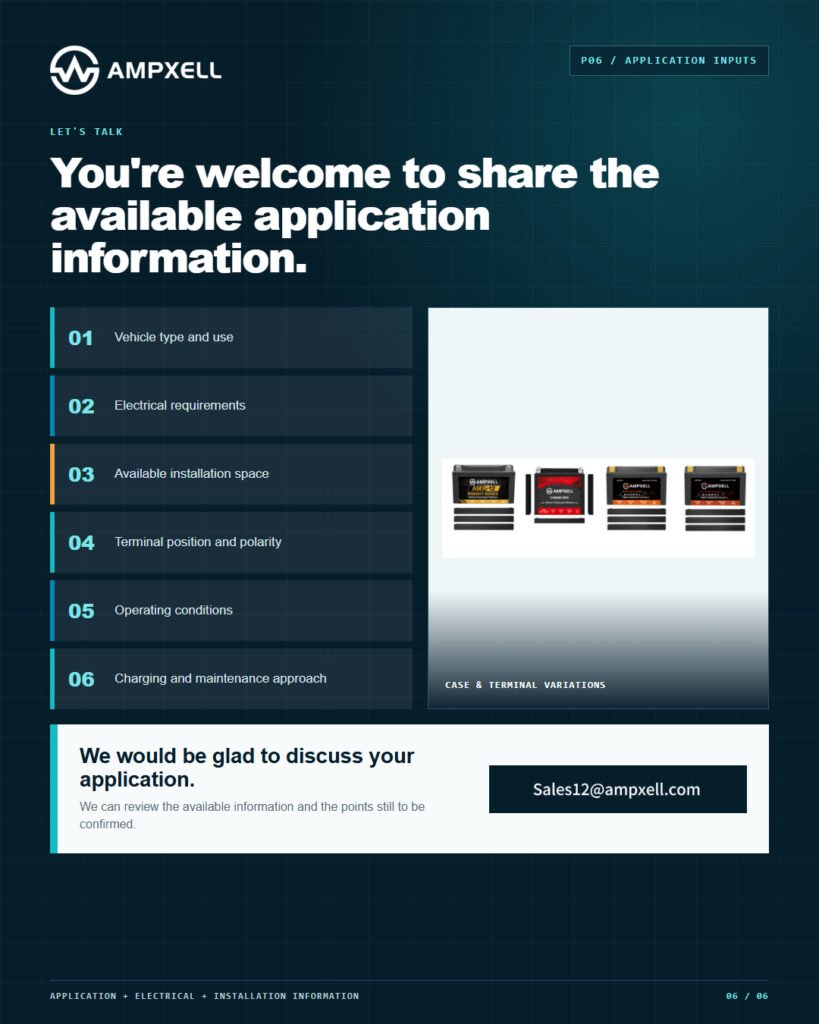

You’re welcome to send your mechanical drawing, electrical requirements and interface information to sales12@ampxell.com. We would be glad to discuss your project and help clarify any open interface questions.
